Universidade Federal de Santa Maria
Ci. e Nat., Santa Maria, v. 46, e74388, 2024
DOI: 10.5902/2179460X74388
ISSN 2179-460X
Submitted: 03/03/2023 • Approved: 17/10/2024 • Published: 29/11/2024
Chemistry
Green synthesis and biotechnological profile of silver nanoparticles using Piper nigrum L. essential oil
Síntese verde e perfil biotecnológico de nanopartículas de prata utilizando o óleo essencial de Piper nigrum L.
João Pedro Mesquita OliveiraI
Gustavo Oliveira EvertonI
Victor Elias Mouchrek FilhoI
I Universidade Federal do Maranhão, São Luís, MA, Brazil
ABSTRACT
It evaluated the chemical profile, antioxidant and anti-inflammatory activity, in an unprecedented way, of silver nanoparticles (AgNPs) synthesized from the essential oil nanoemulsion (NEO) of Piper nigrum. For essential oil extraction (EO), the hydrodistillation technique was used, and the chemical constituents were identified by Gas Chromatography Coupled to Mass Spectrometry (GC-MS). The nanoemulsions were prepared using the phase inversion method, and the synthesis of the AgNPs were performed by the AgNO3 reduction method using NEO. The AgNPs was characterized in terms of chemical profile by UV-Vis Spectrophotometry and particle size by Dynamic Mirroring of Light. Antioxidant activity was evaluated using the ABTS radical discoloration method and anti-inflammatory activity by protein denaturation. The majority constituent of the EO was limonene (42.41%). The maximum SPR band was centered at 420 nm, indicating the characteristic peak of the AgNPs. The lowest IC50 16.26 mg/L for antioxidant activity was obtained for AgNP pH 11. The IC50 that demonstrated the best result for anti-inflammatory activity was pH 11 was 0.217 mg/mL. This study brought in unprecedented results for AgNPs of P. nigrum, demonstrating to be efficient in improving the activities tested in this study and also demonstrating the effect of pH in these formulations.
Keywords: Antioxidant; Anti-inflammatory; Characterization
RESUMO
Este avaliou o perfil químico, atividade antioxidante e anti-inflamatória, de forma inédita, de nanopartículas de prata (AgNPs) sintetizadas a partir da nanoemulsão do óleo essencial (NEO) de Piper nigrum. Para extração do óleo essencial (EO), utilizou-se a técnica de hidrodestilação e os constituintes químicos foram identificados por Cromatografia Gasosa Acoplada à Espectrometria de Massas (CG-EM). As nanoemulsões foram preparadas através do método de inversão de fases e a síntese das AgNPs foram realizadas pelo método de redução de AgNO3 utilizando a NEO. As AgNPs foram caracterizadas quanto ao perfil químico por Espectrofotometria UV-Vis e quanto ao tamanho de partícula por Espelhamento Dinâmico de Luz. A atividade antioxidante foi avaliada através do método de descoloração de radicais ABTS e a atividade anti-inflamatória por desnaturação proteica. O constituinte majoritário do EO foi o limoneno (42,41%). A banda máxima de SPR foi centrada em 420 nm indicando o pico característico das AgNPs. A menor IC50 16,26 mg/L para atividade antioxidante foi obtida para a AgNP pH 11. A IC50 que demonstrou o melhor resultado para a atividade anti-inflamatória foi a do pH 11 foi de 0,217 mg mL-1. Este estudo trouxe de forma inédita resultados para AgNPs de P. nigrum, demonstrando ser eficiente na melhoria das atividades testadas neste estudo, demonstrando também o efeito do pH nessas formulações.
Palavras-chave: Antioxidante; Anti-inflamatória; Caracterização
Silver is one of the most important particles known for its popular medicinal properties (Ebrahiminezhad et al., 2016). The multifaceted properties of silver nanoparticles (AgNPs) have gained incredible importance in all emerging fields, especially in medicine, improving the therapeutic applications of mankind (Shaheen et al., 2016; Burdusel et al., 2018; El-Dali et al., 2021).
In the synthesis protocol of AgNPs, the plant-mediated green process is deservedly used by the scientific community due to its harmless, safe and benign process for the ecosystem (Ahmed et al., 2016). The classical physical and chemical methods had certain disadvantages, including the process requiring high temperature, pressure and toxic ingredients (Chung et al., 2016).
The emergence of nanoparticles has created a great scientific revolution in all fields to provide a sustainable environment for humanity (Diallo et al., 2014). They are exploring tremendous applications to strengthen human power against various threatening dangerous diseases, energy storage requirements and drug/gene delivery systems (Fries et al., 2021), but the current focus is on finding alternative sources for their production.
Plant sources have been selected by researchers mainly for the rapid production of AgNPs. The different parts of the plants such as root, stem, bark, leaf, flower and fruit have been used as potential sources for the production of AgNPs (Nayak et al., 2016; Hebeish et al., 2016; Yuan et al., 2017; Patil et al., 2018; Lakshmanan et al., 2018; Behravan et al., 2019; Jebril et al., 2020). Therefore, in the present study, we selectively selected the essential oil nanoemulsion of Piper nigrum L., which is of medicinal value, for the preparation of AgNPs (Kanniah et al., 2021).
P. nigrum is popularly known as black pepper and belongs to the Piperaceae family (Takooree et al., 2019). The phytochemicals present in this species include flavonoids, alkaloids, terpenoids, tannins, polyphenols, carbohydrates and phenolic acids. These can act as reducing agents and stabilisers in the production of silver nanoparticles (Shervani et al., 2011; Liu et al., 2018). From a green synthesis perspective, we believe that P. nigrum has the potential to act as a reducing agent in the synthesis of AgNPs (Kanniah et al., 2021).
Thus, this study aimed to evaluate the chemical profile, antioxidant and anti-inflammatory activity of AgNPs synthesized from the essential oil nanoemulsion (NEO) of P. nigrum.
2.1 Obtaining plant material
Piper nigrum seeds used in this study were collected in August 2022 from the federally certified distributor. After collection, the plant species were transported to the Laboratory for Research and Application of Essential Oils (LOEPAV/UFMA), where the leaves were weighed, crushed and stored for the extraction of essential oil from the plant.
2.2 Extraction of essential oils
For the extraction of the essential oil (EO), the hydrodistillation technique was performed with a Clevenger glass extractor coupled to a round bottom flask coupled to a heating blanket as a source of heat. 100g of each plant material were used adding distilled water (1:10). Hydrodistillation was performed at 100°C for 3 h and the EO extract was collected. The EO was dried by percolation with anhydrous sodium sulfate (Na2SO4) and centrifuged. These operations were carried out in triplicate and the samples were stored in amber glass ampoules under refrigeration at 4°C. Subsequently submitted to analyses.
2.3 Chemical Profile
Identification of chemical constituents was performed by gas chromatography coupled to mass spectrometry (GC-MS) using a QP 2010 Plus instrument (Shimadzu Corporation, Kyoto, Japan) equipped with a fused silica capillary column (30 m × 0.25 mm) with a DB-5 bonded phase (film thickness, 0.25 µm).
Helium was used as the carrier gas at a flow rate of 1.0 mL/min. The injector and detector temperatures were 220°C and 240°C respectively. The sample injection volume was 0.5 μL, diluted in hexane (1%) and the injection volume split ratio (split) was 1:100. The temperature ramp started at 60 °C, with an increase at a rate of 3 °C/min to 240 °C, followed by an increase of 10 °C/min to 300 °C, with the final temperature maintained for 7 min. The column pressure was approximately 71.0 kPa.
The mass spectrometer was operated at an ionisation potential of 70 eV and an ion source temperature of 200 °C. Mass analysis was performed in full scan mode, in the range of 45 to 500 Da, with a sweep speed of 1000 Da/s and a scan interval of 0.5 fragments/s. Data were acquired and processed using Lab software Solutions LC/GC Workstation 2.72 (Shimadzu, Kyoto, Japan).
The retention index of the compounds was calculated in relation to a homologous series of n-alkanes (nC9 - nC18) using the Van den Dool and Kratz equation (Van Den Dool & Kratz, 1963). The identification of the compounds was carried out by comparing the calculated retention indices with those described in the literature (Adams et al., 2007). Comparisons of the mass spectra obtained with those in the FFNSC 1.2, NIST107 and NIST21 libraries were also made.
Quantitative analysis was performed by gas chromatography with flame ionisation detector (GC-FID) using an instrument model GC-2010 (Shimadzu Corporation, Kyoto, Japan) under identical experimental conditions to those used for qualitative analysis, except for the temperature of the detector, which was 300°C. The relative percentages of each component were obtained by the area normalisation method.
2.4 Preparation of the nanoemulsions
The preparation of the nanoemulsions was carried out according to the adapted methods described by Sugumar et al. (2014), Kubitschek et al. (2014) and Rodrigues et al. (2014).
The EO concentration (5% v/v) was fixed for the formulation. The required amounts of each component of the oil phase (oil + Tween20) were heated to 65 ± 5°C. The aqueous phase was heated separately to 65 ± 5°C, gently added and mixed with the oil phase to form a primary formulation by the phase inversion method. Final homogenisation was achieved using a magnetic stirrer, in which the formulation was kept under constant stirring at 6000 rpm until the temperature was reduced to 25°C ± 2°C.
To demonstrate stability, the formulated nanoemulsions were subjected to different stress tests according to the methodology described by Shafiq et al. (2007). They were tested for phase separation by centrifugation. The heating-cooling cycle was carried out by keeping the formulated nanoemulsions at 40 and 4°C, alternating each temperature for 48 h. The cycle was repeated three times. This was done to check the stability of the nanoemulsion at variable temperatures. The freeze-thaw stress was carried out by keeping the nanoemulsions alternately at -21 and 25°C for 48 h at each temperature. This cycle was repeated twice. The experiment was performed in triplicate.
2.5 Formulation and characterization of nanoparticles
The synthesis of silver nanoparticles was carried out according to the methodology adapted from Sena et al. (2019) and Vilas, Philip and Mathew (2014). To obtain them, a solution of silver nitrate (AgNO3, 1 mmol/L) was prepared in distilled water. For synthesis, the pH of the AgNO3 solution was adjusted to 8, 9, 10 and 11 using sodium hydroxide solution (NaOH 0.1 mol/L). For each condition tested, 10 mL of the AgNO3 solution with the respective corrected pH was heated to 50 °C on a heating plate with constant magnetic stirring. For the addition of the essential oil, a solution of 1000 mg/L was prepared, diluted in acetone 1% for the concentrations of 4-167 mg/L, and added in a volume of 5 mL to the reaction system, giving a total volume of 15 mL. After mixing, the solution was homogenised for 10 min and then incubated for 24 h at room temperature.
Spectroscopic analyses in the UV-Vis range were performed on a spectrophotometer in the 100-320 nm range. 3 mL of each sample was pipetted into a 10 mm optical path quartz bucket at room temperature.
Measurements of the size and distribution of nanoparticles in the colloids were performed by the technique of dynamic light scattering - DLS, which evaluates the hydrodynamic beam using a Zetasizer System Nano ZS90 (Malvern Instruments, UK), according to the methodology described by Sena et al. (2019). Measurements were performed under the following conditions: laser wavelength (He-Ne) of 633 nm, fixed scattering angle of 173º and temperature of 25ºC, and normal resolution mode. Measurements were made using a polystyrene beaker (DTS0012) with a volume of 1.5 mL and a dilution factor of 3x.
2.6 Total Phenolics
The determination of total phenolic compounds of the crossed essential oil and nanoemulsion was performed by the Folin-Ciocalteu spectrophotometric method (Waterhouse, 2002). 5 mg of samples diluted in 1 mL of ethanol were used. To this solution, 7 mL of distilled water, 800 μL of Folin-Ciocalteu reagent and 2.0 mL of 20% sodium carbonate were added. After two hours, the sample was read in a UV-VIS spectrophotometer at 760 nm. The standard curve was expressed in milligrams equivalent to grams (mg EAT/g) of tannic acid.
2.7 Antioxidant activity by elimination of ABTS radicals
A determination of antioxidant activity by the ABTS [2,2-azinobis-(3-ethylbenzothiazolin-6-sulphonic)] method was adapted according to the methodology proposed by Re et al. (1999). From the concentrations of essential oils and silver nanoparticles (5 to 100 mg/L) in ethanol, the reaction mixture with the ABTS radical cation was prepared. In the dark, an aliquot of 100 μL of each concentration of samples containing 3.0 mL of abts radical cation was transferred and after 6 minutes the absorbance of the reaction mixture was read in a spectrophotometer at a wavelength of 730 nm. Analyses were performed in triplicate. The elimination of ABTS radicals was expressed as a percentage and the 50% (EC50/IC50) effective concentrations capable of inhibiting 50% of the elimination, respectively, were expressed in mg/L.
2.8 Anti-inflammatory activity by albumin protein denaturation
The anti-inflammatory activity was evaluated using the albumin protein denaturation method by thermal degradation (Padmanabhan&Jangle, 2012).
The reaction mixture (4000 µL) consisted of 1000 µL of different concentrations of essential oils and silver nanoparticles (100-500 mg/L) diluted in PBS and 3000 µL of a solution to 10% albumin diluted in PBS and incubated at (37±1) °C for 15 min. Denaturation was induced by keeping the reaction mixture in a water bath at 70°C for 10 minutes. After cooling, the absorbance was measured at 660 nm in a UV/VIS spectrophotometer. The inhibition of protein denaturation was expressed as a percentage and the 50% effective concentration (EC50/IC50) capable of inhibiting 50% of the denaturation was expressed in mg/L.
3.1 Chemical profile
Table 1 presents the chemical composition of The EO of P. nigrum extracted in this study.
Table 1 – Chemical composition of the essential oil of Piper nigrum
|
Compound |
IRb |
IRc |
(%)a |
|
a-pinene |
925 |
926 |
5,95 |
|
β-pinene |
972 |
973 |
14,28 |
|
β-myrcene |
992 |
993 |
2,72 |
|
a-phellandrene |
1003 |
1002 |
3,49 |
|
3-carene |
1010 |
1009 |
15,81 |
|
p-cymene |
1024 |
1023 |
1,39 |
|
limonene |
1028 |
1027 |
42,47 |
|
α-terpinolene |
1088 |
1088 |
0,96 |
|
β-linalool |
1100 |
1100 |
1,62 |
|
α-terpineol |
1192 |
1192 |
0,21 |
|
α-copaene |
1379 |
1380 |
1,01 |
|
β-caryophyllene |
1426 |
1427 |
8,53 |
|
α-humulene |
1461 |
1462 |
0,47 |
|
β-selinene |
1493 |
1494 |
0,23 |
|
δ-cadinene |
1529 |
1530 |
0,35 |
|
caryophyllene oxide |
1591 |
1592 |
0,51 |
a- Percentages obtained by peak area normalization FID; b- Linear Kovats retention indexes (column DB-5) experimental; c- Theoretical linear Kovats retention indexes; Source: Authorship (2024)
Sixteen compounds were quantified with limonene being the major compound (42.47%). In their studies, Costa et al. (2010) quantified 17 compounds for P. nigrum EO using the CG/MS technique and reported E-caryofilena as the major compound (24.2%), in addition to quantified caryophilic oxide (20.1%), sabinee (19.9%) and limonene (13.0%).
Melo et al. (2021), also when performing GC/MS to quantify and identify chemical compounds, totalled 38 compounds, with four monoterpenes as main components, including: sabinee (30.62%), limonen (21.43%), β-pineno (9.62%), α-pineno (5.31%) and faire (2.37%), for P. nigrum EO obtained by hydrodistillation.
Furthermore, Costa et al. (2020), when performing GC/MS on P. nigrum EO obtained through hydrodistillation, quantified 29 volatile compounds and obtained a percentage of characterisation, especially monoterpenes with 51.66%, whose main representatives are sabinene (14.96%), wild (14.17%) and α-pipeno (5.28%), in addition to the main component e-caryoene (34.87%).
3.2 Characterization of silver nanoparticles
The colour change of the silver nitrate solution and the EO nanoemulsion is the preliminary identification to confirm the formation of AgNPs. Here, after adding the P. nigrum nanoemulsion to the silver nitrate solution, the colour of the solution changed to pale yellowish brown within 5-10 minutes. In addition, the solution changed to dark brown after 30 minutes of incubation, indicating the production of AgNPs by the reduction of silver metal ions.
To verify the efficiency of AgNP synthesis at different pH values using P. nigrum EO nanoemulsion as reducing agent, the samples were analysed by UV-Vis spectroscopy from 320 to 800 nm and particle formation was observed by surface plasmon resonance (SPR) bands as shown in Figure 1.
Figure 1 shows that as we increase the pH the intensity of PRS increases directly proportional to it.
According to Figure 1, the maximum SPR band was increased by 380 nm and centered at 420 nm indicates the spr peak characteristic of the AgNPs. In all silver nitrate concentration (1-5 mM) the SPR peak was observed at 430 nm. It is emphasized that considering that the peak prS observed for the concentration of 1 mM was achieved more absorbance intensity compared to other concentrations of silver nitrate from other autres, they reveal that the AgNPs increasingly synthesized at 1 mM of silver nitrate have higher intensity.

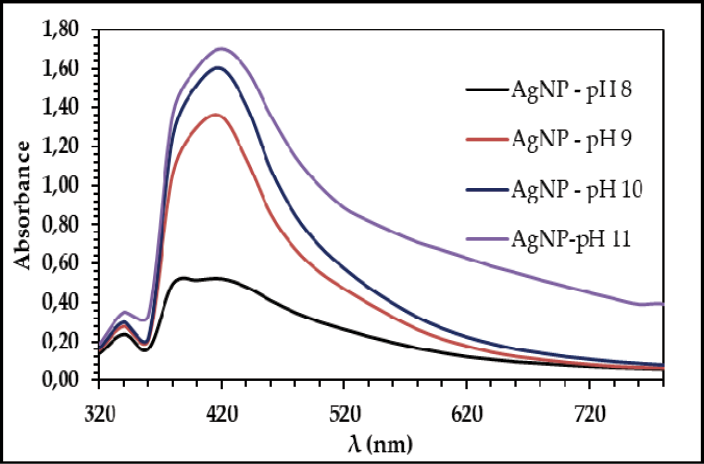

Figure 1 – UV-Vis spectroscopic analysis of silver nanoparticles synthesized with P. nigrum EO nanoemulsion
Source: Authorship (2024)
According to the stability of the synthesised AgNPs, the absorbance was measured and the peak of the SPR was observed at 420-435 nm. The stabilisation is based on the presence of existing stabilising agents in the EO of P. nigrum. Carboxylic acids and ketanacids have been reported to act as reducing and stabilising agents (Ortega-Arroyo et al., 2013; Gomes et al., 2015; Sambalova et al., 2018; Masum et al., 2019). Thus, due to the presence of a large number of stabilising agents, the AgNPs obtained excellent stability up to 30 days.
Table 2 shows the characterisation of the AgNPs synthesised from the nanoemulsion of the EO of P. nigrum by dynamic light microscopy.
It was observed that the higher the pH, the larger the size of the formulated nanoparticles and, consequently, the lower the zeta potential.
Table 2 – Average size of the particle diameter of the AgNPs
|
Piper nigrum |
Average diameter (nm) |
PDI |
Zeta potential (mV) |
|
NPAg-NEO pH 8,0 |
49,12 |
0,555 |
-13,87 |
|
NPAg-NEO pH 9,0 |
35,14 |
0,377 |
-10,44 |
|
NPAg-NEO pH 10,0 |
29,44 |
0,321 |
-8,35 |
|
NPAg-NEO pH 11,0 |
12,25 |
0,222 |
-4,26 |
Note: PDI-Polydispersion index; NPAg-NEO- silver nanoparticles; Source: Authorship (2024)
3.3 Total Phenolic Content
Table 3 presents the spectrophotometric quantification of total phenolic content (TPC) for P. nigrum EO.
Table 3 – Determination of Total Phenolic Content (TPC) of Piper nigrum essential oil
|
EO |
TPC mg EAT/g |
Equation |
R2 |
|
P. nigrum |
220,99 |
y=0,0586x+0,06 |
0,9999 |
EO-Essential oil; Source: Authorship (2024)
Comparing the results presented in Table 3, lower results were observed by Andrade (2015), when extracting P. nigrum EO from a local market in Porto Alegre, Brazil, by supercritical extraction using CO2¬, demonstrating a TPC of 14-22.5 mg GAE/g. In the study by Abdul-Hafeez et al. (2014) Referência não encontrada nas bibliografias, using EO collected in Egypt and extracted by hydrodistillation, lower results were also observed when quantifying the TPC for P. nigrum EO at 14.12 mg GAE/g.
Furthermore, Oboh et al. (2013) conducted studies using P. nigrum EO obtained from western Nigeria and extracted by the hydrodistillation technique, and obtained the TPC of 4.41 mg GAE/g, a result lower than this study. Sruthi et al. (2013), using the EO from eleven localities of Kerala, India, quantified the TPC in the range of 3.0-6.3 mg GAE g/, lower than that used in this study, also extracted by hydrodistillation.
The phenolic compounds quantified in this study are known to exert beneficial effects on human health due to their antioxidant, anti-inflammatory, cardioprotective, anticancer and antimicrobial properties (Acquaviva et al., 2016). They are considered to be excellent antioxidants that can eliminate excessive damage to the body caused by free radicals and chronic diseases. The centre of the antioxidant capacity of phenolics is in the hydroxyl, so the number and position of phenolic hydroxyls are directly related to their antioxidant activity (Farhoosh et al., 2016; Rodriguez et al., 2017).
3.4 Evaluation of antioxidant activity
Table 4 presents the antioxidant capacity of P. nigrum EO and silver nanoparticles.
Table 4 – Antioxidant capacity of essential oil and silver nanoparticles
|
P. nigrum |
IC50 mg/L |
Equation |
R2 |
|
NEO |
66,89 |
a = 71,526; b=-80,561 |
0,9932 |
|
NPAg-NEO pH 8,0 |
42,91 |
a = 72,553; b=-68,448 |
0,9946 |
|
NPAg-NEO pH 9,0 |
40,17 |
a = 55,296; b=-38,692 |
0,9980 |
|
NPAg-NEO pH 10,0 |
16,29 |
a = 45,872; b=-5,5941 |
0,9937 |
|
NPAg-NEO pH 11,0 |
16,26 |
a = 40,477; b=-0,9806 |
0,9944 |
EO- Essential oil; NEO - Nanoemulsion; NPAg- NEO pH 8,0- Silver nanoparticles of P. nigrum pH 8,0; NPAg- NEO pH 9,0- Silver nanoparticles of P. nigrum pH 9,0; NPAg- NEO pH 10,0- Silver nanoparticles of P. nigrum pH 10,0; NPAg- NEO pH 11,0- Silver nanoparticles of P. nigrum pH 11,0; Source: Authors (2023)
As shown in Table 4, where the antioxidant activity values of NEO and the formulated bioproducts were quantified, the best result was observed for the silver nanoparticle at pH 11.0, since it has the lowest IC50.
According to Campos et al. (2003), to be considered active, the IC50 must be quantified at values lower than 500 mg/L. Thus, NEO and all NPAg-NEO were found to be active. It is emphasised that this study presents in an unprecedented way the antioxidant activity of NEO P. nigrum and silver nanoparticles obtained from it by ABTS assay.
According to the values found in Table 4 of the studies of Yusuf et al. (2019), using EO of P. nigrum collected in Japan, they quantified the IC50 in 1740 mg/L, a value higher than that found in this study. Li et al. (2020) also found superior results when performing the antioxidant activity of P. nigrum EO obtained in five different provinces of China, quantifying the IC50 approximate of 9065.47 mg/L.
Furthermore, the study conducted by Loizzo et al. (2014), using the BTS method and P. nigrum EO obtained in the local trade in the United Kingdom, observed lower results when quantifying the IC50 at 5.12 mg/L. However, when analysing the antioxidant activity of EO obtained in India, the work of Johari et al. (2022) found results with an IC50 higher than that of this study, with a IC50 quantified at approximately 377.184 mg/L.
Antioxidants benefit health by neutralising the effects of free radicals that cause cancer, skin ageing and cardiovascular disease. Eliminating free radicals that prevent lipid peroxidation and other free radical processes protects the body and prevents oxidation of processed foods (Anwar et al, 2009). And bioproducts obtained from the EO of P. nigrum, as well as those obtained in this study, show improved antioxidant potential, highlighting the unprecedented synthesis of silver nanoparticles from the nanoemulsion of this EO with high application potential.
3.5 Anti-inflammatory capability
Table 5 presents the anti-inflammatory capacity of P. nigrum EO and silver nanoparticles.
Table 5 – Anti-inflammatory capacity of essential oil and silver nanoparticles
|
P. nigrum |
IC50 mg/L |
Equation |
R2 |
|
NEO |
28,09 |
a = 7,0133; b=-18,8000 |
0,9999 |
|
NPAg-NEO pH 8,0 |
0,964 |
a = 0,0432; b=-8,3513 |
0,9999 |
|
NPAg-NEO pH 9,0 |
0,888 |
a = 0,0507; b=-4,9367 |
0,9915 |
|
NPAg-NEO pH 10,0 |
0,475 |
a = 0,0849; b=-9,6253 |
0,9589 |
|
NPAg-NEO pH 11,0 |
0,217 |
a = 0,0535; b=-0,38397 |
0,9513 |
EO- Essential oil; NEO - Nanoemulsion; NPAg- NEO pH 8,0- Silver nanoparticles of P. nigrum pH 8,0; NPAg- NEO pH 9,0- Silver nanoparticles of P. nigrum pH 9,0; NPAg- NEO pH 10,0- Silver nanoparticles of P. nigrum pH 10,0; NPAg- NEO pH 11,0- Silver nanoparticles of P. nigrum pH 11,0; Source: Authors (2023)
As shown in Table 5, where the values for the anti-inflammatory activity of NEO and the formulated bioproducts were quantified, and the best result for the silver nanoparticle with pH 11.0 was observed, because it has the lowest IC50.
According to the classification of Jonville et al. (2011), to be considered moderately active, it should present IC50 < 130 mg/L, therefore the quantified values for all bioproducts of this study are considered interesting and moderately active following this criterion.
Comcanting the values found in Table 5 to the studies of Nagavekar&Singhal (2018), using solvent extract from P. nigrum grains, it quantified the IC50 in approximately 55 mg/L, a value higher than that found in this study. In their studies, Lomarat et al. (2015) quantified the IC50 of P. nigrum EO at 61.63 mg/L, a value higher than those found in all bioproducts formulated investigated in this study.
It is emphasized that this study presents in an unprecedented way the anti-inflammatory activity by the protein denaturation method of NEO of P. nigrum and silver nanoparticles from it.
Finally, silver nanoparticles (AgNPs) were synthesised in an unprecedented way from the nanoemulsion of P. nigrum essential oil. There was a directly proportional increase in the surface plasmon resonance of silver nanoparticles with increasing pH. Sixteen chemical constituents were quantified by CG/MS, with limonene being the major constituent of P. nigrum essential oil. In addition, the IC50 for the antioxidant activity of silver nanoparticles, classified as active, the best result for this assay was observed in the nanoparticle with pH 11. In this study, the quantification of the IC50 for the anti-inflammatory activity of silver nanoparticles was also carried out in an unprecedented way, where all the samples tested were shown to be efficient for antioxidant activity, highlighting the best result for the formulation with pH 11. Therefore, it can be concluded that this study has brought in an unprecedented way the results for silver nanoparticles synthesised from the nanoemulsion of the essential oil of P. nigrum, where it proved to be efficient in improving the activities tested in this study, also demonstrating the effect of pH in these formulations.
We thank FAPEMA for the resources offered and to LOEPAV/UFMA.
Abdul-Hafeez, E. Y., Karamova, N. S., & Ilinskaya, O. N. (2014). Antioxidant activity and total phenolic compound content of certain medicinal plants. Int. J. Biosci, 5(9), 213-222.
Acquaviva, R., Sorrenti, V., Santangelo, R., Cardile, V., Tomasello, B., Malfa, G., & Di Giacomo, C. (2016). Effects of an extract of Celtis aetnensis (Tornab.) Strobl twigs on human colon cancer cell cultures. Oncology Reports, 36(4), 2298-2304.
Ahmed, S., Ahmad, M., Swami, B. L., & Ikram, S. (2016). A review on plants extract mediated synthesis of silver nanoparticles for antimicrobial applications: a green expertise. Journal of advanced research, 7(1), 17-28.
Andrade, K. S. (2015). Extração e microencapsulamento de extratos de interesse biológico provenientes de pimenta-do-reino (Piper nigrum L.) e de pimenta rosa (Schinus terebinthifolius R.) (Tese de mestrado). Curso Engenharia de Alimentos, Universidade Federal de Santa Catarina - UFSC, Florianópolis, SC, Brasil.
Behravan, M., Panahi, A. H., Naghizadeh, A., Ziaee, M., Mahdavi, R., & Mirzapour, A. (2019). Facile green synthesis of silver nanoparticles using Berberis vulgaris leaf and root aqueous extract and its antibacterial activity. International journal of biological macromolecules, 124, 148-154.
Burdușel, A. C., Gherasim, O., Grumezescu, A. M., Mogoantă, L., Ficai, A., & Andronescu, E. (2018). Biomedical applications of silver nanoparticles: an up-to-date overview. Nanomaterials, 8(9), 681.
Campos, K. E., Diniz, Y. S., Cataneo, A. C., Faine, L. A., Alves, M. J. Q. F., & Novelli, E. L. B. (2003). Hypoglycaemic and antioxidant effects of onion, Allium cepa: dietary onion addition, antioxidant activity and hypoglycaemic effects on diabetic rats. International journal of food sciences and nutrition, 54(3), 241-246.
Chung, I. M., Park, I., Seung-Hyun, K., Thiruvengadam, M., & Rajakumar, G. (2016). Plant-mediated synthesis of silver nanoparticles: their characteristic properties and therapeutic applications. Nanoscale research letters, 11(1), 1-14.
Diallo, M. S., Fromer, N. A., & Jhon, M. S. (2014). Nanotechnology for sustainable development: retrospective and outlook (pp. ١-١٦). Journal of Nanoparticle Research, 15(2044), 1-16.
Ebrahiminezhad, A., Raee, M. J., Manafi, Z., Sotoodeh Jahromi, A., & Ghasemi, Y. (2016). Ancient and novel forms of silver in medicine and biomedicine. Journal of Advanced Medical Sciences and Applied Technologies, 2(1), 122-128.
Farhoosh, R., Johnny, S., Asnaashari, M., Molaahmadibahraseman, N., & Sharif, A. (2016). Structure–antioxidant activity relationships of o-hydroxyl, o-methoxy, and alkyl ester derivatives of p-hydroxybenzoic acid. Food chemistry, 194, 128-134.
Fries, C. N., Curvino, E. J., Chen, J. L., Permar, S. R., Fouda, G. G., & Collier, J. H. (2021). Advances in nanomaterial vaccine strategies to address infectious diseases impacting global health. Nature Nanotechnology, 16(4), 1-14.
Gomes, J. F., Garcia, A. C., Ferreira, E. B., Pires, C., Oliveira, V. L., Tremiliosi-Filho, G., & Gasparotto, L. H. (2015). New insights into the formation mechanism of Ag, Au and AgAu nanoparticles in aqueous alkaline media: alkoxides from alcohols, aldehydes and ketones as universal reducing agents. Physical Chemistry Chemical Physics, 17(33), 21683-21693.
Hebeish, A., Shaheen, T. I., El-Naggar, & M. E. (2016). Solid state synthesis of starch-capped silver nanoparticles. International journal of biological macromolecules, 87, 70-76.
Jebril, S., Jenana, R. K. B., & Dridi, C. (2020). Green synthesis of silver nanoparticles using Melia azedarach leaf extract and their antifungal activities: In vitro and in vivo. Materials Chemistry and Physics, 248, 122898.
Kanniah, P., Chelliah, P., Thangapandi, J. R., Gnanadhas, G., Mahendran, V., & Robert, M. (2021). Green synthesis of antibacterial and cytotoxic silver nanoparticles by Piper nigrum seed extract and development of antibacterial silver-based chitosan nanocomposite. International Journal of Biological Macromolecules, 189, 18-33.
Kubitschek, K. M., A. R. J., & Zero, J. M. (2014). Development of jojoba oil (Simmondsia chinensis (Link) CK Schneid.) based nanoemulsions. Lat. Am. J. Pharm, 33(3), 459-63.
Lakshmanan, G., Sathiyaseelan, A., Kalaichelvan, P. T., & Murugesan, K. (2018). Plant-mediated synthesis of silver nanoparticles using fruit extract of Cleome viscosa L.: assessment of their antibacterial and anticancer activity. Karbala International Journal of Modern Science, 4(1), 61-68.
Masum, M. M. I., Siddiqa, M. M., Ali, K. A., Zhang, Y., Abdallah, Y., Ibrahim, E., & Li, B. (2019). Biogenic synthesis of silver nanoparticles using Phyllanthus emblica fruit extract and its inhibitory action against the pathogen Acidovorax oryzae strain RS-2 of rice bacterial brown stripe. Frontiers in microbiology, 10, 820.
Nayak, D., Ashe, S., Rauta, P. R., Kumari, M., & Nayak, B. (2016). Bark extract mediated green synthesis of silver nanoparticles: evaluation of antimicrobial activity and antiproliferative response against osteosarcoma. Materials Science and Engineering: C, 58, 44-52.
Oboh, G., Ademosun, A. O., Odubanjo, O. V., & Akinbola, I. A. (2013). Antioxidative properties and inhibition of key enzymes relevant to type-2 diabetes and hypertension by essential oils from black pepper. Advances in Pharmacological Sciences, 2013(4), 92604.
Ortega‐Arroyo, L., Martin‐Martinez, E. S., Aguilar‐Mendez, M. A., Cruz‐Orea, A., Hernandez‐Pérez, I., & Glorieux, C. (2013). Green synthesis method of silver nanoparticles using starch as capping agent applied the methodology of surface response. Starch‐Stärke, 65(9‐10), 814-821.
Padmanabhan, P., & Jangle, S. N. (2012). Evaluation of in-vitro anti-inflammatory activity of herbal preparation, a combination of four medicinal plants. International journal of basic and applied medical sciences, 2(1), 109-116.
Patil, M. P., Singh, R. D., Koli, P. B., Patil, K. T., Jagdale, B. S., Tipare, A. R., & Kim, G. D. (2018). Antibacterial potential of silver nanoparticles synthesized using Madhuca longifolia flower extract as a green resource. Microbial pathogenesis, 121, 184-189.
Re, R., Pellegrini, N., Proteggente, A., Pannala, A., Yang, M., & Rice-Evans, C. (1999). Antioxidant activity applying an improved ABTS radical cation decolorization assay. Free radical biology and medicine, 26(9-10), 1231-1237.
Rodrigues, E. D. C., Ferreira, A. M., Vilhena, J. C., Almeida, F. B., Cruz, R. A., Florentino, A. C., & Fernandes, C. P. (2014). Development of a larvicidal nanoemulsion with Copaiba (Copaifera duckei) oleoresin. Revista Brasileira de Farmacognosia, 24, 699-705.
Sambalova, O., Thorwarth, K., Heeb, N. V., Bleiner, D., Zhang, Y., Borgschulte, A., & Kroll, A. (2018). Carboxylate functional groups mediate interaction with silver nanoparticles in biofilm matrix. Acs Omega, 3(1), 724-733.
Sena, A. E. C., Ramos, A. L., & Faria, F. S. E. D. V. (2019). Avaliação da síntese de nanopartículas de prata sob diferentes concentrações do extrato de Copaíba multijuga (Heine). Scientia Naturalis, 1(1), 10-16.
Shafiq, S., Shakeel, F., Talegaonkar, S., Ahmad, F. J., Khar, R. K., & Ali, M. (2007). Development and bioavailability assessment of ramipril nanoemulsion formulation. European journal of pharmaceutics and biopharmaceutics, 66(2), 227-243.
Shaheen, T. I., El-Naggar, M. E., Hussein, J. S., El-Bana, M., Emara, E., El-Khayat, Z., & Hebeish, A. (2016). Antidiabetic assessment; in vivo study of gold and core-shell silver-gold nanoparticles on streptozotocin-induced diabetic rats. Biomedicine & Pharmacotherapy, 83, 865-875.
Shervani, Z., & Yamamoto, Y. (2011). Carbohydrate-directed synthesis of silver and gold nanoparticles: effect of the structure of carbohydrates and reducing agents on the size and morphology of the composites. Carbohydrate research, 346(5), 651-658.
Sruthi, D., ZACHARIAH, J. T., Leela, N. K., & Jayarajan, K. (2013). Correlation between chemical profiles of black pepper (Piper nigrum L.) var. Panniyur-1 collected from different locations. Journal of Medicinal Plants Research, 7(31), 2349-2357.
Sugumar, S., Clarke, S. K., Nirmala, M. J., Tyagi, B. K., Mukherjee, A., & Chandrasekaran, N. (2014). Nanoemulsion of eucalyptus oil and its larvicidal activity against Culex quinquefasciatus. Bulletin of entomological research, 104(3), 393-402.
Takooree, H., Aumeeruddy, M. Z., Rengasamy, K. R., Venugopala, K. N., Jeewon, R., Zengin, G., & Mahomoodally, M. F. (2019). A systematic review on black pepper (Piper nigrum L.): from folk uses to pharmacological applications. Critical reviews in food science and nutrition, 59(1), S210-S243.
Van Den Dool, H. A. N. D., & Kratz, P. D. (1963). A generalization of the retention index system including linear temperature programmed gas-liquid partition chromatography. J Chromatogr, 11, 463-71
Waterhouse, A. L. (2002). Determination of total phenolics. Current protocols in food analytical chemistry, 6(1), I1-1.
Yuan, C. G., Huo, C., Gui, B., Liu, P., & Zhang, C. (2017). Green synthesis of silver nanoparticles using Chenopodium aristatum L. stem extract and their catalytic/antibacterial activities. Journal of Cluster Science, 28, 1319-1333.
Authorship contributions
1 – João Pedro Mesquita Oliveira
Bacharelado em Química em andamento pela Universidade Federal do Maranhão
https://orcid.org/0000-0003-1833-9814 • joao-p01@live.com
Contribution: Conceptualization, Data curation, Formal Analysis, Investigation,
Methodology, Software, Supervision, Validation, Visualization, Project administration, Writing – original draft, Writing – review & editing
2 – Gustavo Oliveira Everton
Mestrado em Saúde e Ambiente pela Universidade Federal do Maranhão
https://orcid.org/0000-0002-0457-914X • gustavooliveiraeverton@gmail.com
Contribution: Conceptualization, Data curation, Formal Analysis, Investigation,
Methodology, Software, Supervision, Validation, Visualization, Project administration, Writing – original draft, Writing – review & editing
3 – Victor Elias Mouchrek Filho
Doutor em Química pela Universidade de São Paulo
https://orcid.org/0000-0003-2855-7292 • victor.mouchrek@ufma.br
Contribution: Funding acquisition, Resources
How to quote this article
Oliveira, J. P. M., Everton, G. O., & Mouchrek Filho, V. E. (2024). Green synthesis and biotechnological profile of silver nanoparticles using Piper nigrum L. essential oil. Ciência e Natura, 46, e74388. https://doi.org/10.5902/2179460X74388
