Mathematical modeling in quantification of [18F] FDG positron emission tomography images

Modelagem matemática na quantificação de imagens de tomografia por emissão de pósitrons com radiofármaco [18F] FDG

Nadine Skolaude TimmI

Eliete Biasotto HauserII

I Undergraduate student in Chemical Engineering, Pontifíca Universidade Católica do Rio Grande do Sul, Porto Alegre, RS, Brasil

https://orcid.org/0000-0002-4210-2174 – nadine.timm@acad.pucrs.br

II PhD in Applied Mathematics, Pontifíca Universidade Católica do Rio Grande do Sul, Porto Alegre, RS, Brasil

https://orcid.org/0000-0001-7494-2461 – eliete @pucrs.br

ABSTRACT

Techniques for locating and quantifying brain glucose metabolism using compartmental modeling by solving systems of differential equations ordinary require an input function (input function), Ca(t). To avoid invasive procedures, such as collecting arterial blood samples, it is possible to obtain Ca(t) of the first order ordinary differential equation Cr´(t) = K1Ca(t)-K2Cr(t), where Cr(t) describes the concentration of the radiopharmaceutical in a reference region. Cr(t) is built from data obtained by processing images generated by positron emission tomography (PET) with radiotracers. In this work, the carotids were chosen as the reference region, and regression techniques were applied seeking to adjust the discrete activity curves (TAC) data obtained by PET imaging with the radiopharmaceutical fluorodeoxyglucose [18F]FDG. Aiming to find the same model type for all patients, the picewise linear function proved to be adequate to describe four stages of the behavior of the Cr(t) concentration: rapid growth and degrowth, intermediate and slow degrowths.

Keywords: Radiotracer; Positron emission tomography (PET); Reference region; Kinetic modeling

RESUMO

Técnicas de localização e quantificação do metabolismo de glicose cerebral utilizando modelagem compartimental via resolução de sistemas de equações diferenciais ordinárias requerem uma função de entrada (input function), Ca(t). Para evitar procedimentos invasivos, como coleta de amostras de sangue arterial, é possível obter Ca(t) da equação diferencial ordinária de primeira ordem Cr´(t) = K1Ca(t)-K2Cr(t), onde Cr(t) descreve a concentração do radiofármaco numa região de referência. Cr(t) é construída a partir de dados obtidos pelo processamento de imagens geradas por tomografia por emissão de pósitrons (PET) com radiotraçadores. Neste trabalho, as carótidas foram escolhidas como região de referência, e técnicas de regressão foram aplicadas buscando ajustar os dados de curvas de atividades discretas (TAC) obtidas por meio de imagens PET com o radiofármaco fluorodeoxiglicose [18F] FDG. Com o objetivo de encontrar um mesmo tipo modelo para todos os pacientes, a função linear por partes mostrou-se adequada para descrever quatro etapas do comportamento da concentração Cr(t): crescimento e decrescimento rápidos, decrescimentos intermediário e lento.

Palavras-chave: Radiofármaco; Tomografia por emissão de pósitron (PET); Região de referência; Modelagem cinética

1 INTRODUCTION

There is a select population group, among people over eighty years old, in that some individuals show resistance to brain changes considered normal for age, with cognitive capacity similar to that of people twenty to thirty years younger. This group is defined as the super-elderly. On the other hand, there is a large number of people with Alzheimer’s disease, persistent dementia and progressive. Using biomarkers, getting an early diagnosis can help in an attempt to prevent the disease from developing or reaching an advanced stage of degeneration (Borelli, 2019).

Positron emission tomography (PET) is an imaging technology that helps in the diagnosis and treatment of diseases, through the application of radiopharmaceuticals in the blood flow. To quantify the metabolic activity of the brain, the radiopharmaceutical [18F]2 − F luor2Deoxy − D − Glucose([18F]F DG) is used as a marker, which can aid in the detection of degenerative brain diseases, exhibiting the dynamics of the rate of Radiopharmaceutical glucose metabolism through PET imaging.

Mathematical modeling is used to describe the dynamics of [18F] FDG radiotracer through an irreversible two-compartment model, represented by a system of two differential equations, which depends on a input function, obtained from the concentration in arterial blood. Thus, the main objective of this work is to model activity curves (TAC) in a reference region, necessary in the construction of the input function. It should be noted that all data used in this study were obtained from the Superidosos project, developed at Rio Grande do Sul Brain Institute (InsCer).

2 MEthodology

2.1 Irreversible two-compartment model

The two-compartment irreversible model, illustrated in Figure 1, is used to represent the change of state of the radiopharmaceutical [18F]FDG. Ca represents the arterial concentration of free FDG in plasma. The first compartment C1 represents the extravascular concentration of FDG in a target tissue, available for phosphorylation. The second compartment C2 represents the concentration of FDG which has undergone phosphorylation.

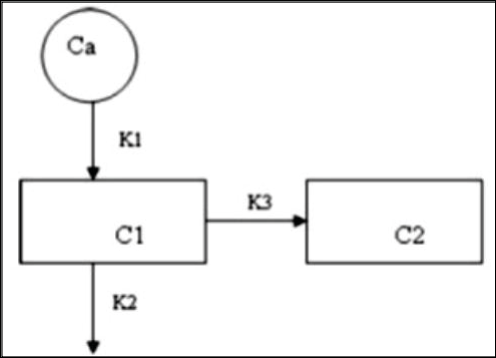

Figure 1 – FDG Two-Compartment Irreversible Model

Source: Hauser et al., 2019

The mass conservation principle applied to the compartments allows build the mathematical representation of the irreversible two-compartment model of the FDG as a system of two first order ordinary differential equations expressed in Equation (1) below:

(1)

where, Ca(t) is the input function, C1(t) e C2(t) are, respectively, the concentrations of FDG that first enters the free compartment C1 and then is irreversibly metabolized in the compartment C2, K1, k2 and k3 are the positive physiological transport constants that describe the inflow and the outflow. The initial concentrations in the two compartments are considered to be null, that is, C1(0) = 0 and C2(0) = 0.

The Laplace transform technique, as demonstrated in Hauser et al. (2019), allows quantifying the concentration in each compartment C1 and C2 through the system analytical solution (1), expressed by the convolution integrals:

(2)

In the construction of the input function Ca(t) it is important to obtain a model that allows the calculation of the convolution integral (2).

2.2 Input Function from PET images

In order to avoid invasive procedures such as blood sample collection several studies are found in the literature proposing alternative techniques for construction of the input function (Hauser et al., 2019; Hauser et al., 2020). Considering a one-compartment model to describe the dynamics of FDG in a reference region,Cr(t), where no phosphorylation occurs (a form of get the input function) the concentration of the marker in the blood plasma, Ca(t) is obtained from the differential equation expressed in Equation (3):

(3)

where are the shipping fees. The main objective of this work is to determine Cr(t) from PET image processing with FDG, a reverse engineering technique.

3 RESULTS

FDG PET CT scans were performed in three volunteer patients participants of the Superidosos project developed at InsCer. Images were obtained on GE Healthcare Discovery DiscoveryD 600 equipment, protocol observed pre-set doctor. Data were collected in DICOM format and then later processed using the PMOD biomedical quantification software (PMOD Technologies LLC, Zurich).

The reference regions (right carotid and left) and created a Volume of Interest (VOI), as shown in Figure 2.

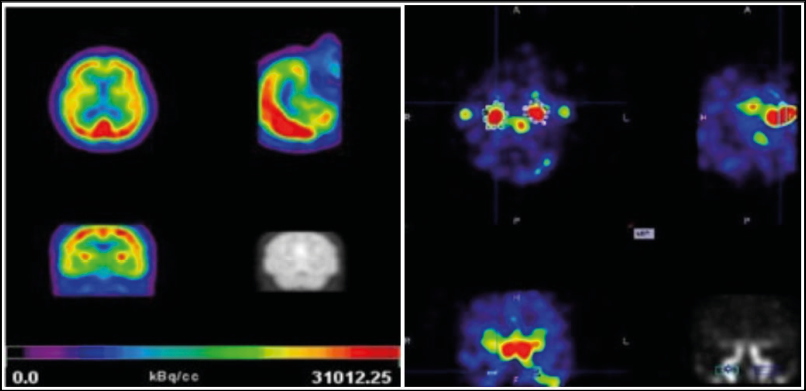

Figure 2 – FDG PET axial, coronal and sagittal orientation and Bilateral Carotid VOI

Source: Oliveira, 2019

For the three patients, the activity curves were defined in the created VOIS (TAC), a discrete set of points graphically represented in Figure 3. From the PET image, the activity curves (TAC) are obtained, a discrete and finite set of FDG points in the VOI, as shown in Figure 3.

Different functions are suitable for different patients when applied non-linear regression techniques (Hauser et al., 2019; Hauser et al., 2020). So, in order to find the same model type for all patients, the piecewise linear function was adequate to describe four steps of concentration behavior: very fast growth, fast degrowth, intermediate degrowth and slow degrowth.

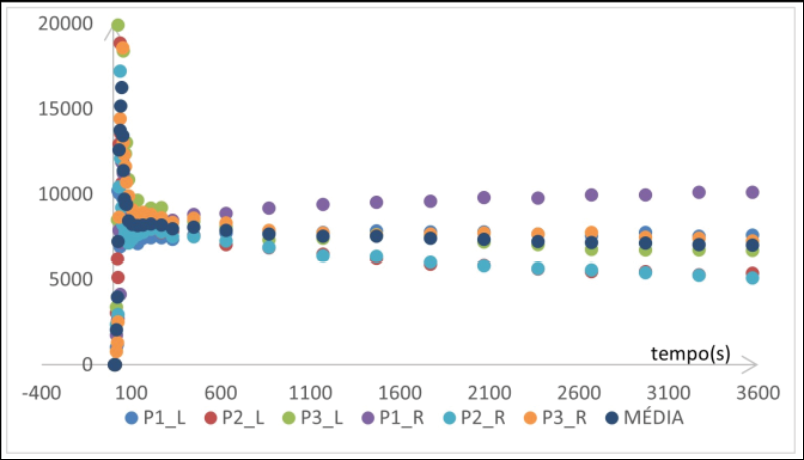

Figure 3 – Discreet TAC

Source: Of the author

The time interval [0, 3570], PET image acquisition time, was subdivided into four sub-intervals: [0, 47.5], [47.5 , 85], [85 , 1170] and [1170 , 3570] , and linear regression was applied. The linear model Cr(t) = At + B proved to be adequate for all four time sub-intervals considered, with few exceptions.

Table 1 shows the values obtained for A and B, for t Є [0; 47.5]. The lowest Pearson correlation coefficient was 0.6811 and occurred for P2-R.

Table 1 – Parameters A e B, t Є [0; 47,5]

Carotid	A	B	R
P1-L	278,2	-2222,7	0,7143
P1-R	253,13	-2657,4	0,8056
P2-L	391,15	-2818,2	0,7132
P2-R	350,71	-3067,9	0,6811
P3-L	841,55	-7556,4	0,914
P3-R	623,93	-8844	0,8414

Table 2 shows the values obtained for A and B, for t Є [47.5 ; 85]. The lowest Pearson correction coefficient was 0.6774 and occurred for P2-L.

Table 2 – Parameters A e B, t Є [47,5 ; 85]

Carotid	A	B	R
P1-L	-65,772	12812	0,7944
P1-R	-122,68	17743	0,8562
P2-L	-63,849	12618	0,6774
P2-R	-44,786	10892	0,7363
P3-L	-482,86	48306	0,735
P3-R	-531,13	47144	0,8838

Table 3 – Parameters A e B, t Є [85 ; 1170]

Carotid	A	B	R
P1-L	-0,2294	7393,2	0,6307
P1-R	-1,0848	7993,5	0,8959
P2-L	-1,3616	8084	0,8561
P2-R	-1,0182	7800,4	0,6507
P3-L	-2,514	9817,9	0,7403
P3-R	-1,4627	9242,6	0,7377

Table 4 shows the values obtained for A and B, for t Є [1170 ; 3570]. The lowest Pearson correction coefficient was 0.4944 and occurred for P1-L.

Table 4 – Parameters A e B, t Є [1170 ; 3570]

Carotid	A	B	R
P1-L	-0,1157	7987,7	0,4944
P1-R	-0,2767	9168,4	0,9254
P2-L	-0,477	6871,6	0,9124
P2-R	-0,5598	7058,9	0,9804
P3-L	-0,4263	8109,4	0,8289
P3-R	-0,1512	7956,2	0,5531

In an attempt to build a single Cr(t) for all patients it was considered the mean value of the concentrations in Figure 1, at each time. It might be convenient in diagnosing Alzheimer’s to consider the time interval [1200, 2700]. In this time interval, with R2 = 0:9598, the linear model expressed in the Equation (4).

𝐶𝑟 (𝑡) = −0,2576 𝑡 + 7878,9

(4)

and illustrated graphically in Figure 4.

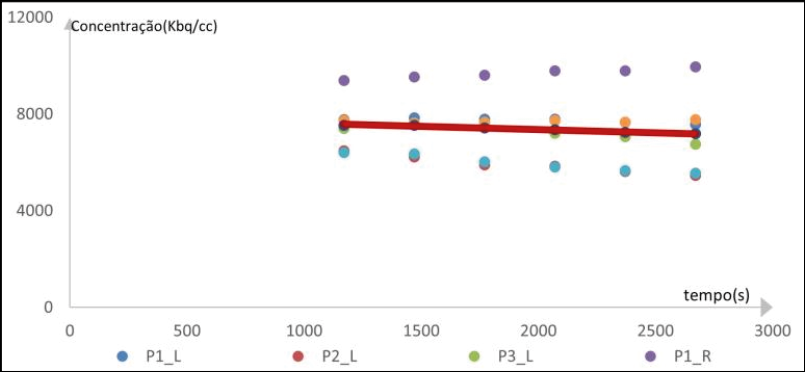

Figure 4 – Discrete TAC and Cr(t) considering average values for t in [1200; 2700]

Source: of the author

4 FINAL CONSIDERATIONS

From the processing of PET images, in this work a reverse engineering technique to non-invasively determine concentration Cr(t) of the [18F]FDG radiopharmaceutical in a reference region (carotids), necessary for solve an irreversible two-compartment model that describes the metabolism of glucose in Alzheimer’s dementia. The piecewise linear function proved to be adequate for the three patients considered and described four stages of the behavior of the concentration: very fast growth, fast degrowth, degrowth intermediate and slow degrowth. Also, in search of a single Cr(t) for all the patients, the linear model proved to be adequate when considering the mean value of the concentrations at each time.

THANKS

This study was possible due to the teamwork of all members of the Superidosos project, which was partially supported by CNPq, project number 403029/2016-3 and FAPERGS, project number 27971.414.15498.22062017.

ReferENCES

BORELLI, W. V. (2019). Correlação Entre Neuroimagem Molecular, Estrutural e Funcional em Superidosos. 143 f. Thesis (Doctorate) Programa de Pós-Graduação de Medicina e Ciências da Saúde da Pontifícia Universidade Católica do Rio Grande do Sul. Porto alegre.

HAUSER, E. B., VENTURINI, G. T., GREGGIO, S., BORELLI, W. V., COSTA, J. C. (2019). Carotid arterial input function as an inverse problem in kinetic modeling of [18]2 − fluoro − 2deoxy − Dglucose(F DG). Computer Methods in Biomechanics and Biomedical Engineering: Imaging & Visualization, 8, 2168-1171.

HAUSER, E. B., BORELLI, W. V., COSTA, J. C. (2020). Biomechanical Model Improving Alzheimer’s. Disease. In: Redha Taiar, editor. Recent Advances in Biomechanics 77–91.Intech Open.

OLIVEIRA, F. (2019). Modelo Logístico para Descrever as Atividades de Curvas Discretas Obtidas de Imagens PET com Radiofármaco [18F]FDG num Volume de Interesse das Carótidas. 28 f. Dissertation (Lato sensu) Pontifícia Universidade Católica do Rio Grande do Sul Porto Alegre.
